My name is Sean and I am currently a Data Analyst. I have interests on the side pertaining to Computer Networks and Cybersecurity. Those interests have led me to gaining certifications in those fields and building my own home lab.

On this website, I display some of the projects that I have built and my takeaways from each. In addition to these projects, I also have my resume and my contact information below.

Follow Me

Download Resume

Certifications

Below is a list of certifications that I have taken in my networking journey

CompTIA Network+

CompTIA Network Plus Certification.

Date received: July 2025

CompTIA Security+

CompTIA Security Plus Certification.

Date received: December 2025

CCNA (IN PROGRESS)

Cisco Certified Network Associate Certification.

Date expected: April 2026

Projects

Proxmox Server

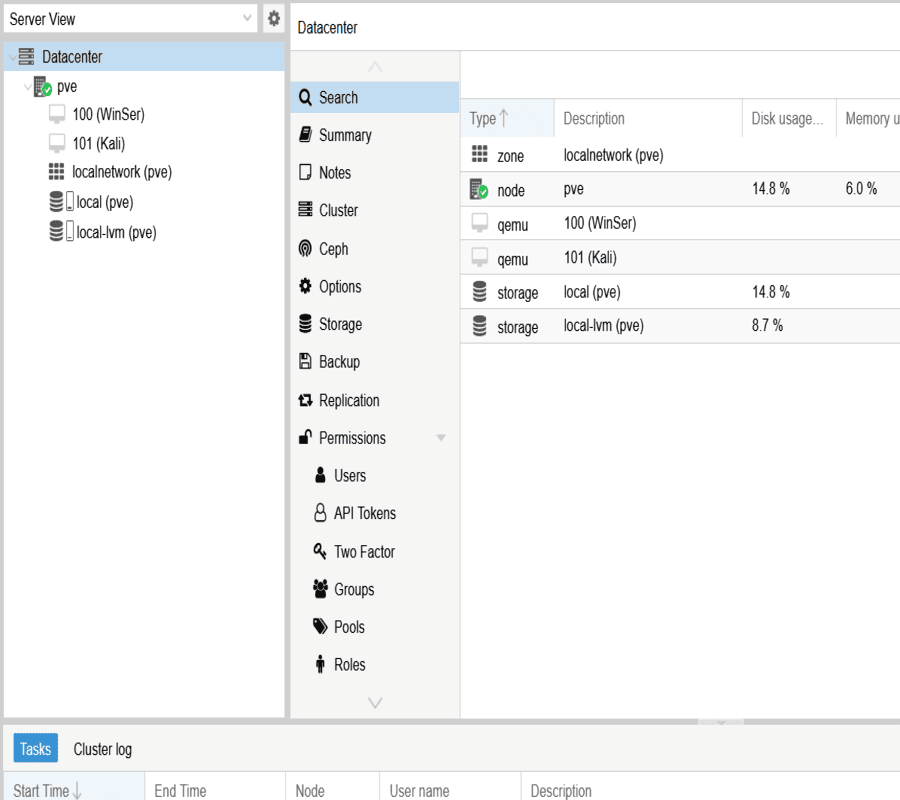

I set up a proxmox server on a used laptop. From there, I set up an instance of Windows Server 2022 and a Kali Linux instance. I set up my server to give DHCP and DNS services to my machines on proxmox. From there, I got an IP address and DNS services were given by the server rather than my own WiFi router.

While playing around with my proxmox server, I wanted to see if I could access my server from outside of my LAN. I thought about port forwarding, but port forwarding is insecure and could open my LAN to attacks. So I also installed Tailscale onto my instance of proxmox, so now I can access my Proxmox machine from anywhere as long as I am connected to Tailscale from the machine that I am using outside of the LAN.

Image Source: Proxmox

Amazon Web Services

I did the same project as with the proxmox project on the left, except I decided to use AWS to attempt to replicate my work. For that, I created my own Virtual Private Cloud, and created a public and private subnet. From there, I put my Windows server in my public cloud and an instance of Amazon Linux in my private instance and connected to it through another Linux instance in my public subnet. I did not use Windows Server's DHCP service, as AWS has its own, but I was able to have it run its DNS service, and tested it on my private Linux instance.

Part of my learning process here was to learn how AWS's VPC and EC4 services worked and how they related to each other. I also had to learn how to give my public subnet a route table and an internet gateway to get the cloud to access the internet and vice versa. I made the route table for the public subnet point to the internet. For my private subnet, I had to create another route table, but instead of pointing it to the internet, I pointed it to a NAT gateway, so that the internet cannot access the private subnet, and therefore, my private Linux instance.

Self-hosted Network Attached Storage

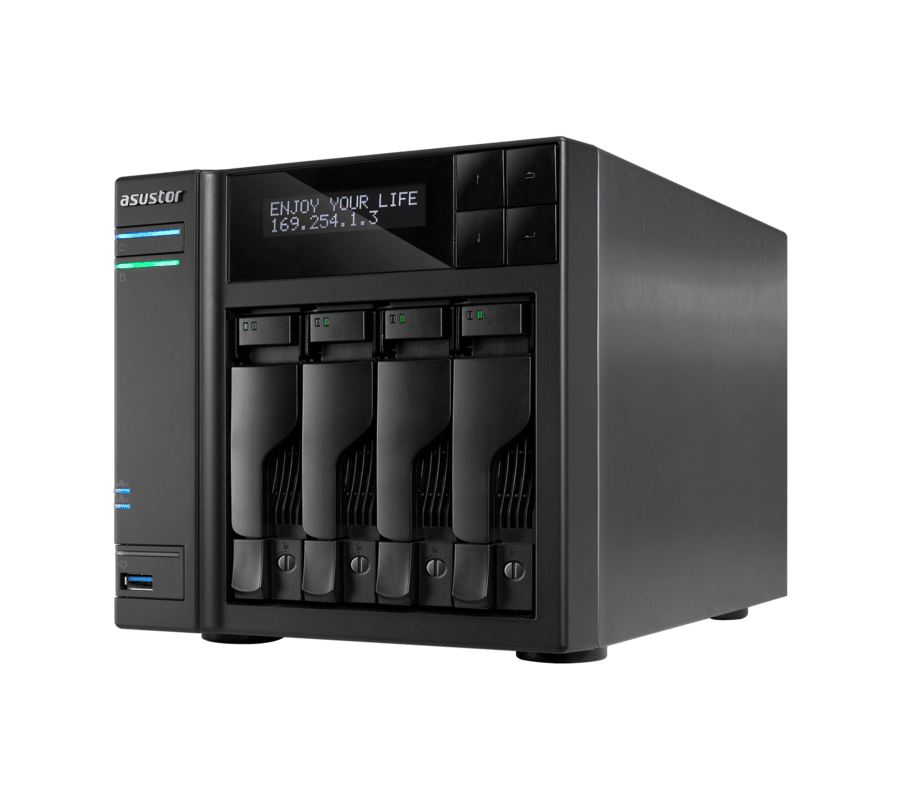

Through my CompTIA Network+ exam, I learned about what a Network Attached Storage (NAS) was, and I wanted to see if I could replicate my own rather than using a cloud storage like Google Drive or OneDrive.

Using a Raspberry Pi 5, I downloaded OpenMediaVault and attached a hard drive to my machine. From there, I set up an admin and user account so I could access my storage. I also used Tailscale as a means to connect to it using my computer's Server Message Block (SMB) protocol to allow access to it from outside of my LAN.

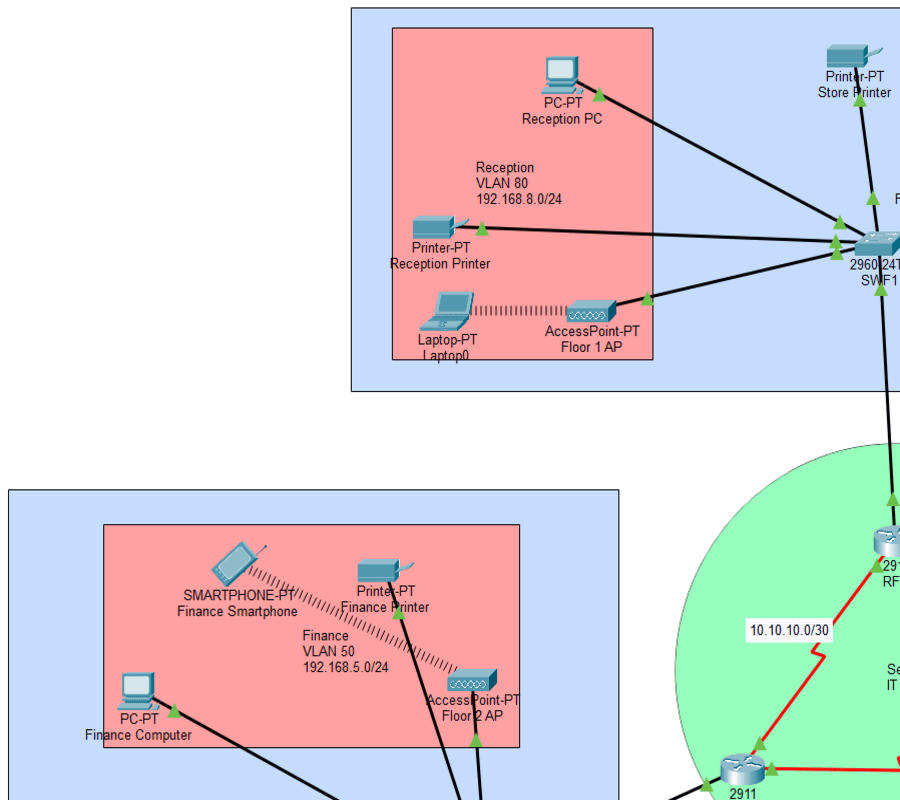

Cisco Packet Tracer labs

As I am currently studying for the CCNA, I have a github repository where I keep labs. You can access my labs here.

In these labs, I follow an online template, and I try to replicate those results. These labs are productive for my learning because it helps me see what commands on the devices or concepts I am weak in, and helps me practice for the actual exam.
